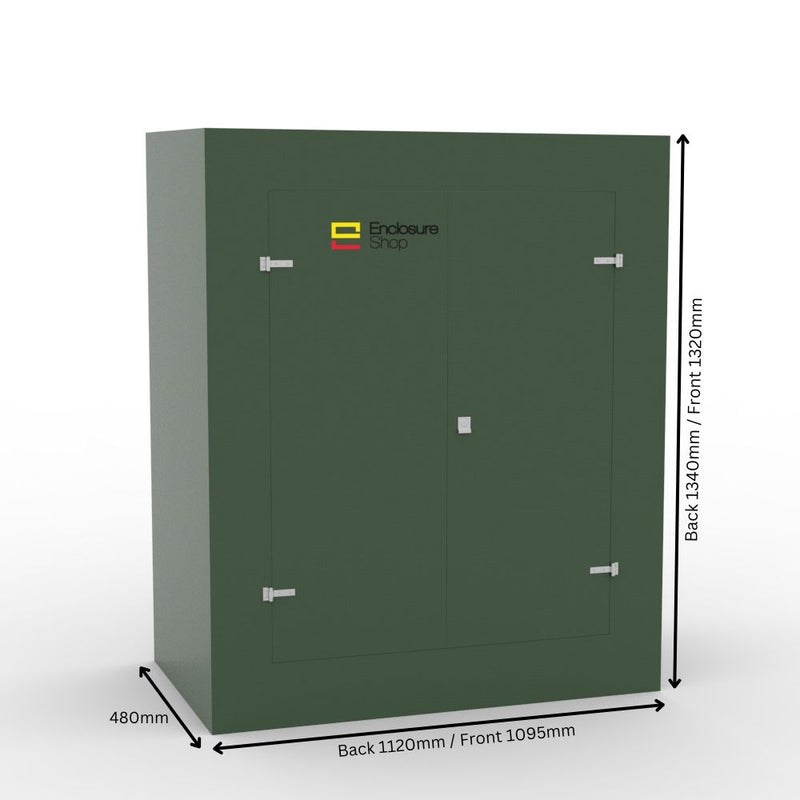

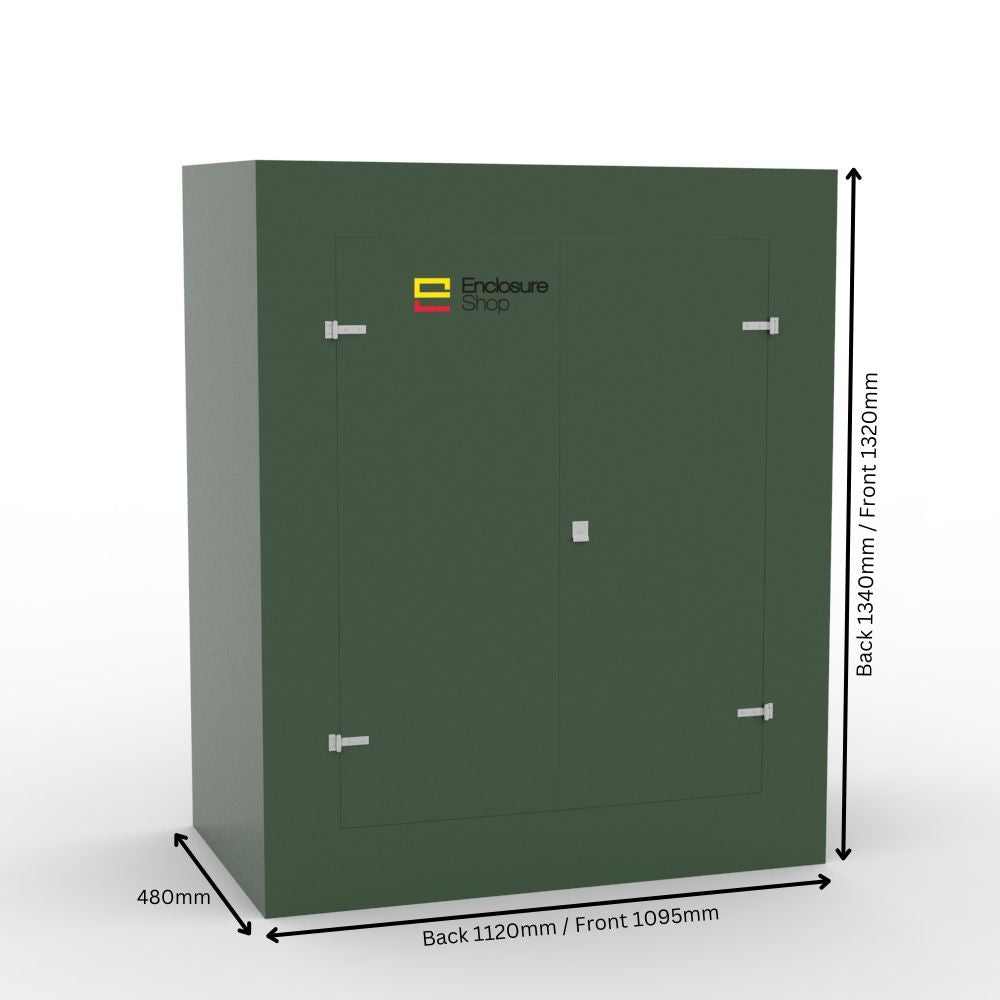

GRP Enclosure 1120mm x 485mm x 1340mm - DPM6

Our DPM6 In Enclosure with Double Opening Doors provides weatherproof storage for equipment on the roadside or site use. Our GRP cabinet enclosures are suitable for the protection of various items of industrial equipment. They are commonly used by Gas, Water and Electricity providers and local authorities along with the mechanical services industry and many others. IP55 Compliant (without Louvre Vents) and made with Class 2 Fire Resistant Resin (30 Minute Resistance).

DPM6 Drawing

DPM6 Data Sheet

Included as Standard:

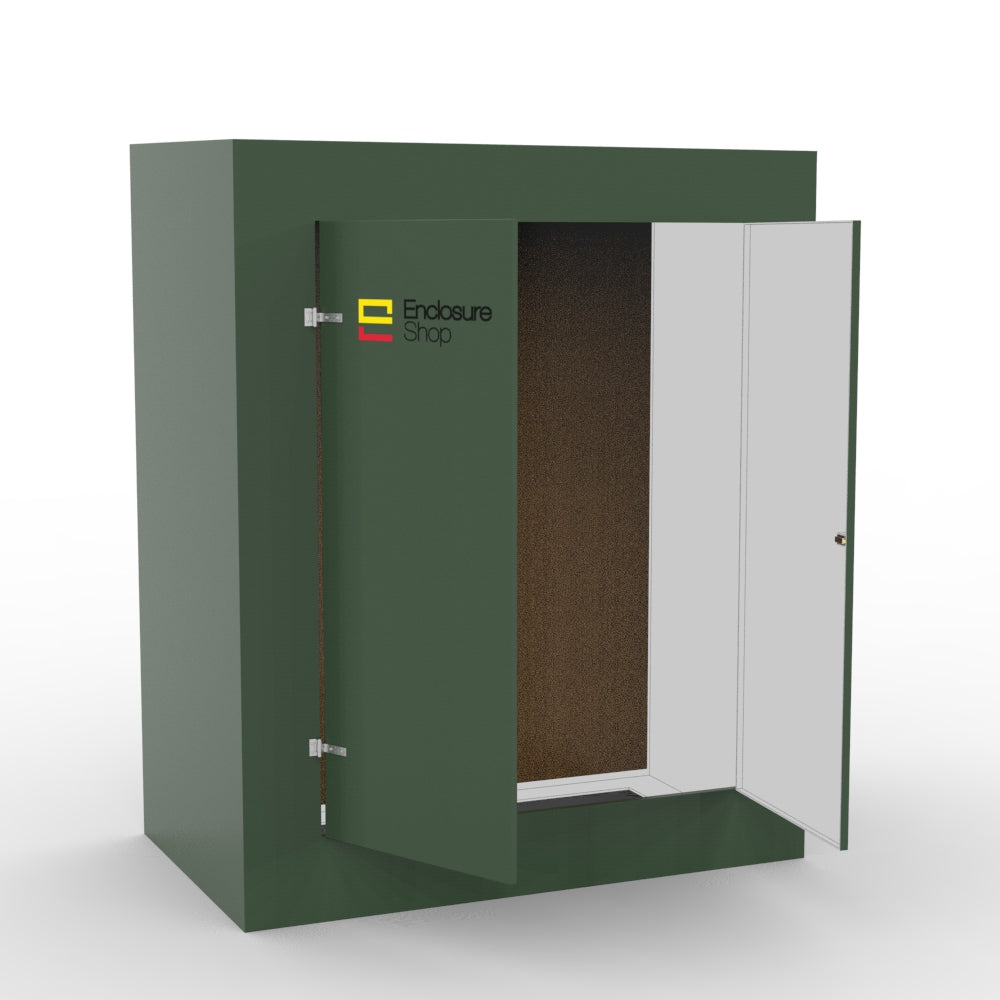

• Double doors

• Cylinder night latch lock & 3 keys or stainless steel hasp & staple (padlock not supplied)

• Stainless steel hinges & fixings
• Smooth Semi Gloss Finish - Green (14-C-39) as standard, or Grey (BSA10A05)

• Internal finish - durable polyester gel coat finish in white
• 18mm treated plywood backboard for fixing equipment
• Open floor with integral bolt down flanges (100-150mm)
• Dust/Water prevention seals/IP55 Compliant (less if ordered with Louvre Vents)

• Made with Class 2 fire resistant resin (30 minute resistance)

Options:

• Colour - Green (14-C-39), Grey (BSA10A05)
• Lock Version - Cylinder Lock or Hasp & Staple

Optional Extras:

• Door Stays
• Louvre Vents


Our GRP housings are hand made in the UK and manufactured from the highest quality GRP materials to withstand the rigours of the harshest weather conditions and are IP55 Compliant (without louvre vents).

External colour is British Racing Green (14-C-39) as standard, or Grey (BSA10A05). All enclosures have a tough weather resistant polyester gel coat outer and sloped roof for rainwater run off, reinforced with a GRP laminate.

Internal finish is a durable polyester gel coat finish in white with a 18mm ply back wall to fit equipment (around 30mm smaller than back wall). The GRP has an open floor with a 100-150mm flange which can be used to bolt down the enclosure.
