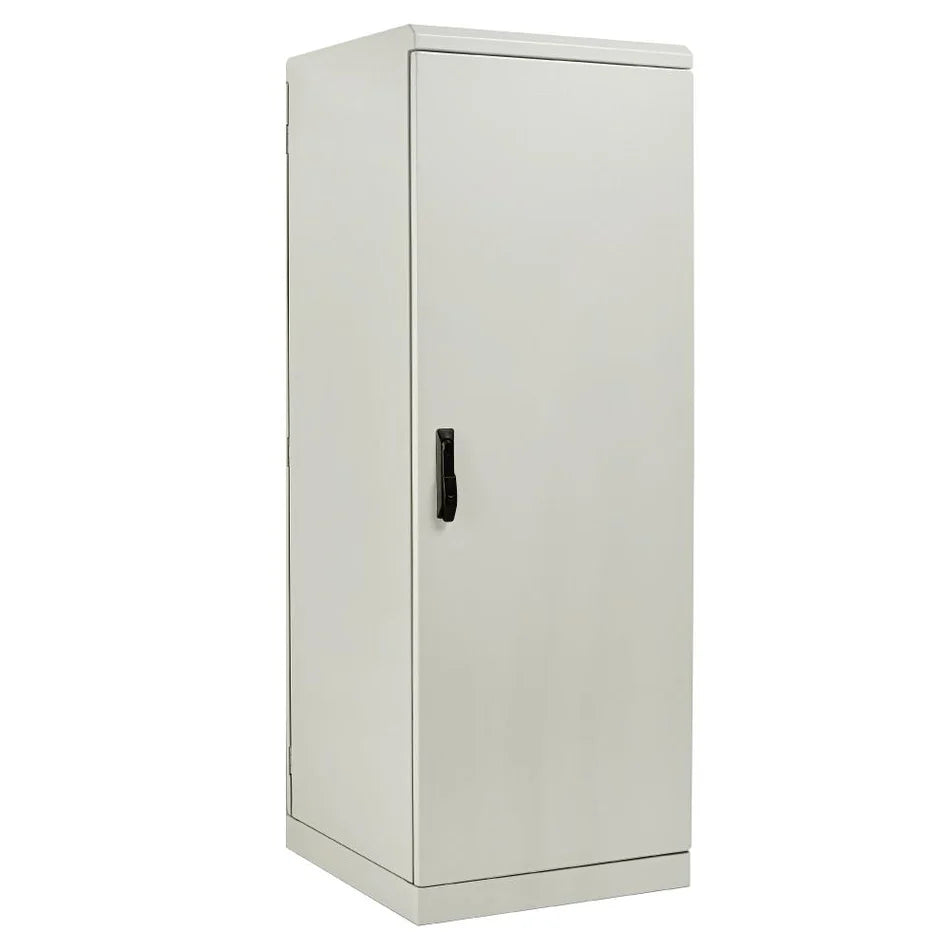

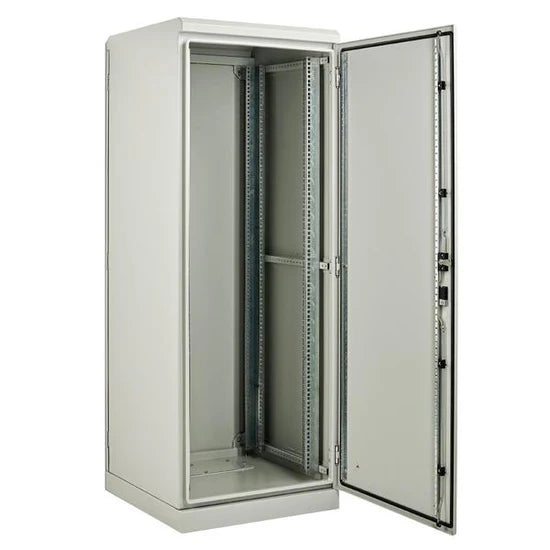

Protect your critical networking and data equipment in the harshest environments with the Galvanised Steel Enclosure 19" 24U Data Rack. Engineered explicitly for heavy-duty applications, this premium IP66-rated server cabinet offers maximum protection against dust, water ingress, and physical impacts.
Whether you are deploying sensitive data network equipment in an industrial indoor facility or a challenging outdoor infrastructure site, this 24RU enclosure provides an uncompromised, weather-resistant housing solution. Manufactured from high-quality 1.5mm galvanised steel and finished in a resilient textured RAL7035 grey powder coating, it is built to survive where standard IT racks fail.
IP66 & NEMA 4 Weatherproof Protection: Independently tested to prevent dust and high-pressure water jets from breaching the cabinet. Ideal for washdown areas, coastal areas, or high-dust industrial zones.
IK10 Impact Resistance: Robust monoblock body and 1.5mm galvanised steel sheet construction provide high security and protection against vandalism or accidental workplace impacts.
Advanced Eco-Friendly Seal: Features a machine-applied, foamed-in-place (FIP) Polyurethane full perimeter door seal, offering extended lifespan and superior temperature resilience (-40°C to 80°C).
High-Security 3-Point Locking: Equipped with a heavy-duty key-locking swing handle acting on a secure 3-point locking system to restrict unauthorized access.
Smart Cable Management: An integrated galvanised steel gland plate on the bottom face facilitates secure, sealed cable entry, while removable door-mounted cable management rails maximize your internal working space.
Rack Capacity: 24U / 24RU (Rack Units)
Dimensions: 1200mm Height x 400mm Width x 400mm Depth
Material: 1.5mm galvanised steel sheet (Body, Door, and 19” Rack Rails)

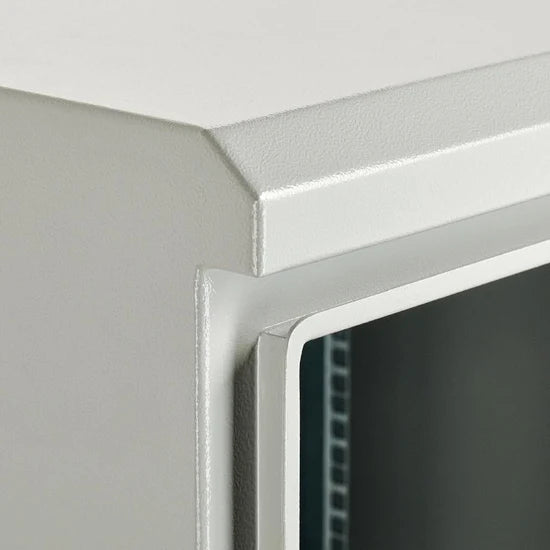

Finish: UL-approved epoxy polyester powder-coated, textured finish (80-120 micron average thickness)
Colour: Light Grey (RAL7035)

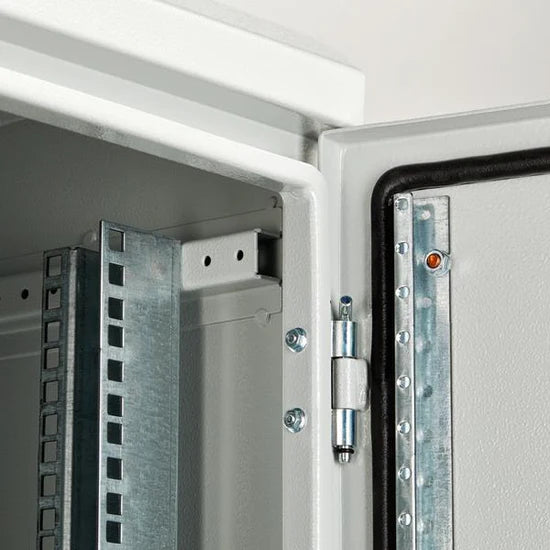

Door Opening: 110° opening with concealed removable hinges and captive pins
Earthing: Internal M6 earth studs provided on both the body and door
Standards Compliance: AS60529, IEC/EN 60529, EIA-310-D, CE, UKCA, and RoHS compliant
Outdoor telecommunications and broadband infrastructure
Industrial automation, manufacturing plants, and processing facilities
Water treatment plants and marine-adjacent environments
Security, CCTV, and remote monitoring hub installations
Rail, transport, and roadside roadside electronics enclosures
