Galvinised Steel Root Mounted Feeder Pillar 250mm x 150mm x 750mm - GLV50

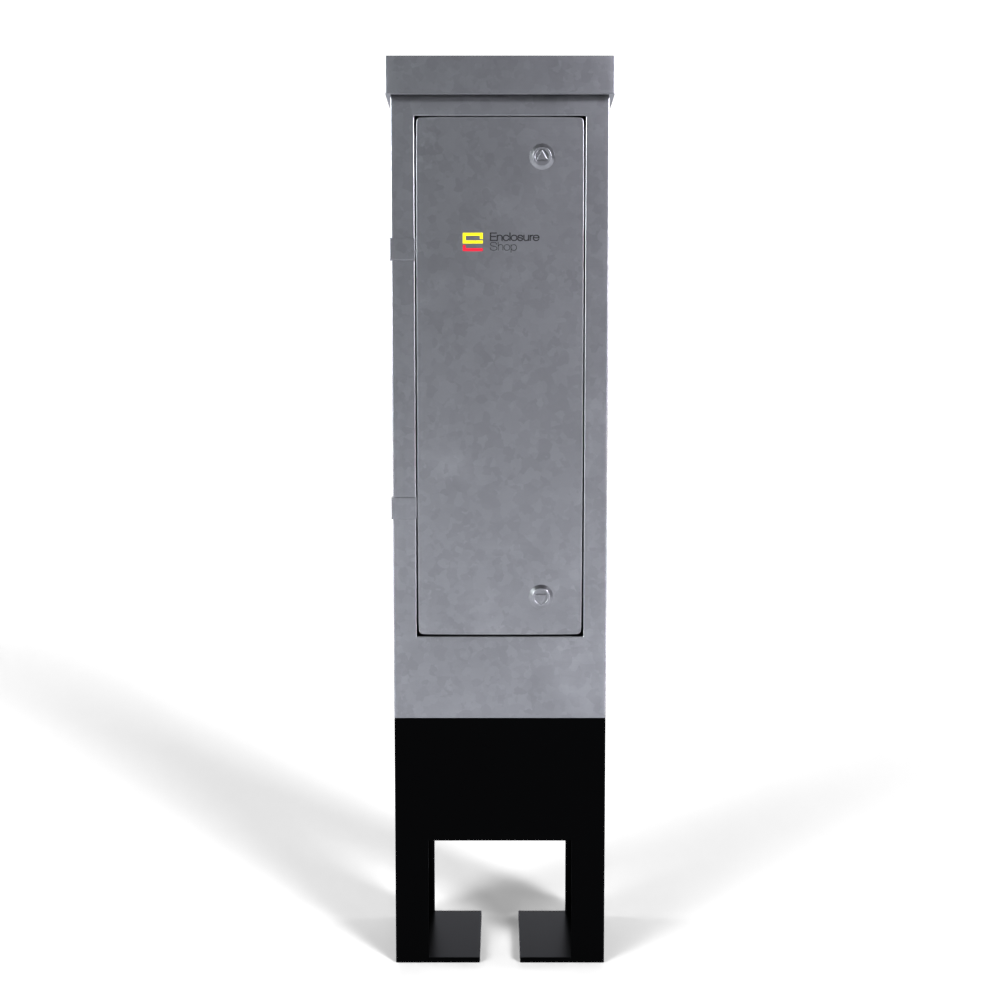

GLV50 Galvanised Steel Root Mounted Feeder Pillar – 250 × 150 × 750mm

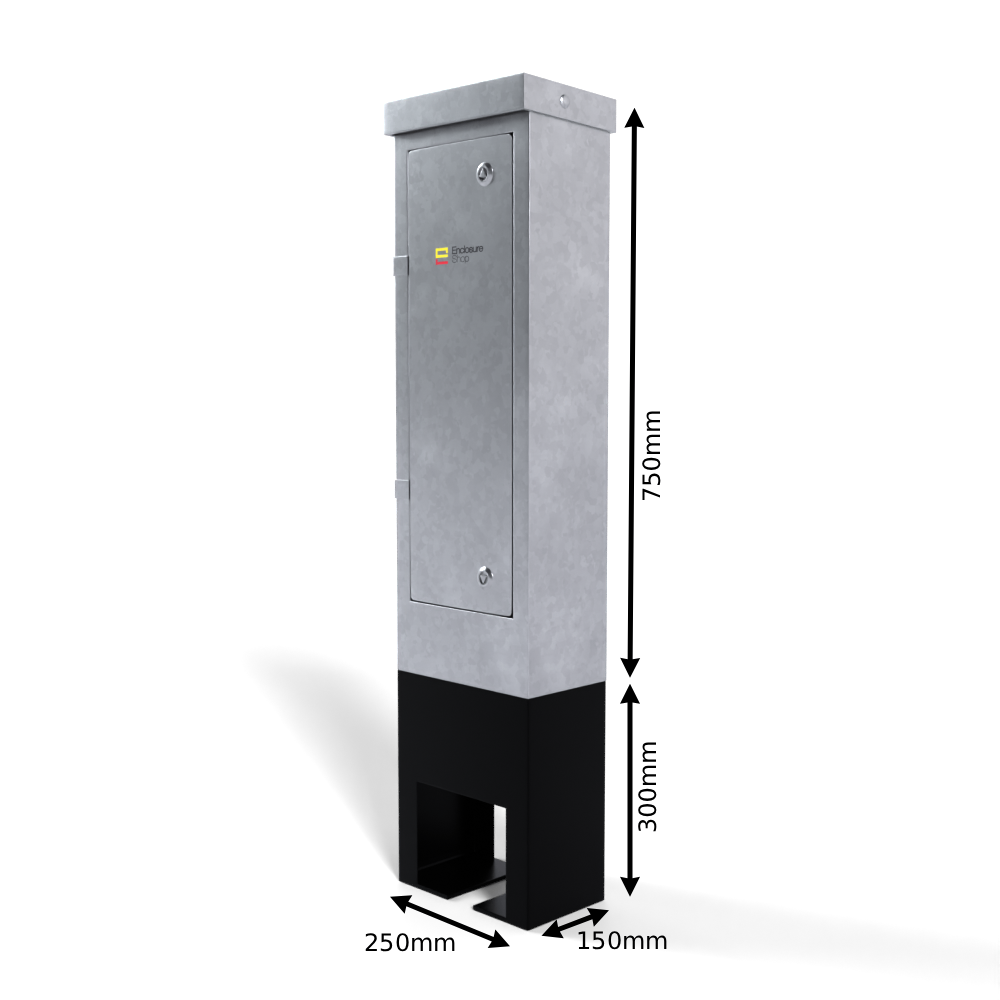

The GLV50 galvanised steel feeder pillar provides a compact, robust housing for outdoor electrical equipment. Measuring 250mm wide × 150mm deep × 750mm high, it is suited to installations where space is limited and a durable root mounted enclosure is required.

Handmade in England from 3mm HR4 mild steel, the GLV50 is hot dip galvanised to BS EN ISO 1461 for corrosion resistance. Its detachable painted root supports ground installation, with the ground level clearly marked to assist positioning.

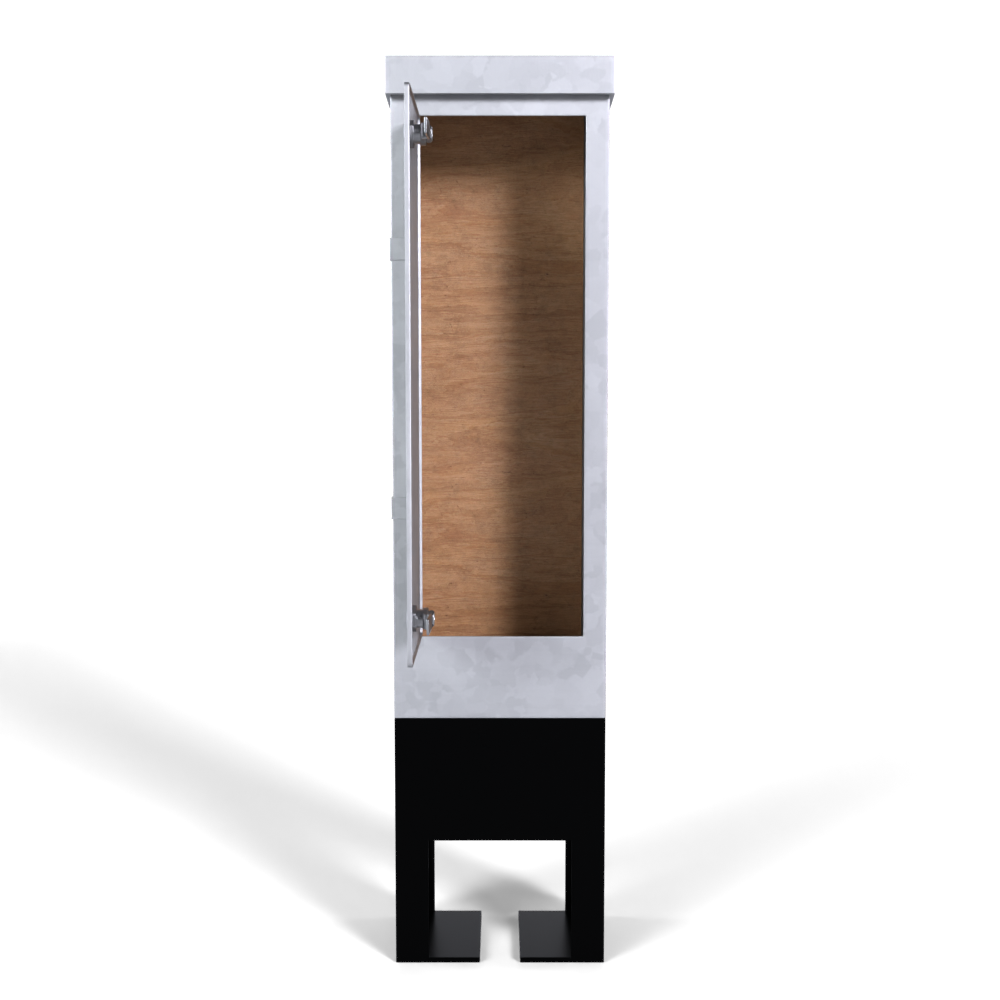

An 18mm fully treated, exterior-grade plywood backboard provides a mounting surface for electrical components, while the 140mm working depth helps installers plan the internal layout. The door is secured with an 8mm triangular-key camlock, and door seals designed to IP55 help limit dust and water ingress.

Key Features

• 3mm steel construction: robust housing for outdoor installations.

• Hot dip galvanised finish: corrosion protection to BS EN ISO 1461.

• Detachable painted root: practical installation and below-ground mounting.

• Treated plywood backboard: 18mm thick mounting surface for equipment.

• Triangular-key camlock: controlled access to the enclosure.

• Stainless steel block hinges: durable, corrosion-resistant door hardware.

• Earthing provisions: 6mm brass earth studs on the pillar and door, with a 500mm earth strap.

• Hazard warning labels: supplied to BS EN ISO 7010.

• Made in England.

Included as Standard:

• Constructed from HR4 3mm thick mild steel; robust, and durable for long term use

• Hot dipped galvanised to BS EN ISO 1461 standard protects against rust and corrosion; extends life of product

• Detachable painted root gives long lasting protection and ease of installation

• Pillars are fitted internally 18mm external grade, fully treated plywood backboard; strong, stable and knot free

• 6mm brass earth stud on pillar and door with 500mm earth strap; protects individuals and equipment

• Ground level clearly marked for safety and ease of installation
• Pillars are supplied with hazard warning labels to BS EN ISO 7010 standard; saves time and cost fo installer

• Door seals designed to IP55; protects against dust and water spray

• Tri-head, CLL Anti-vandal lock ensures security and protects against tampering

• Cast stainless-steel block hinges; strong and resist rust and corrosion

• Recessed or flush doors for security and protection

Colour Options:

• Powder coating to RAL or BS colours, anti-graffiti, G2A and Heritage style

• Painted root where not as standard

• Louvre panels to doors or side panels dependant on model

• Construction in 304 or 316 grade stainless-steel

• Hasp & staple available for added protection

• Various lock types

• Cable exit trays

Our Galvanised Steel housings are hand made in England and manufactured from the highest quality steel and finished with a hot dip galvanised to BS EN ISO 1461 standard finish to withstand the rigours of the harshest weather conditions.
