Galvinised Steel Root Mounted Feeder Pillar 450mm x 250mm x 950mm - GLV70

GLV70 Galvanised Steel Root Mounted Feeder Pillar – 450 × 250 × 950mm

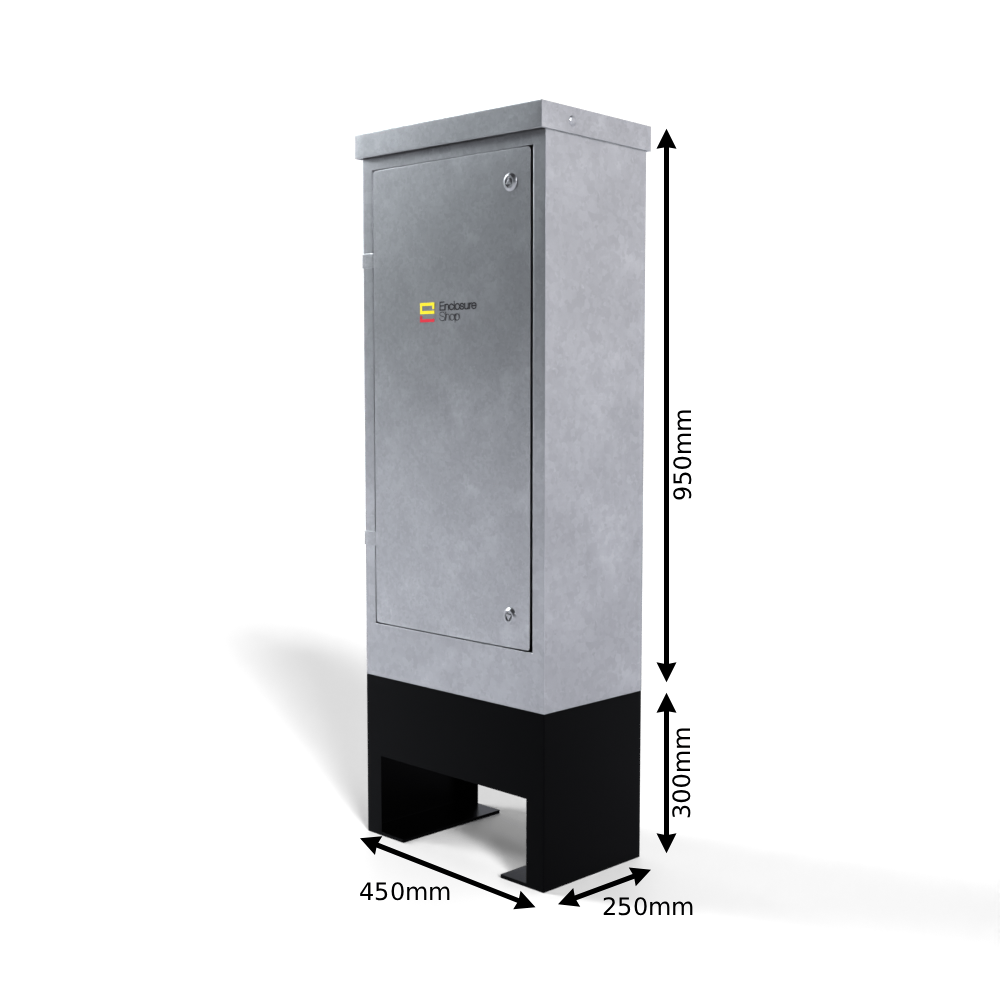

The GLV70 galvanised steel feeder pillar provides a compact, robust housing for outdoor electrical equipment. Measuring 450mm wide × 250mm deep × 950mm high, it is suited to installations where space is limited and a durable root mounted enclosure is required.

Handmade in England from 3mm HR4 mild steel, the GLV70 is hot dip galvanised to BS EN ISO 1461 for corrosion resistance. Its detachable painted root supports ground installation, with the ground level clearly marked to assist positioning.

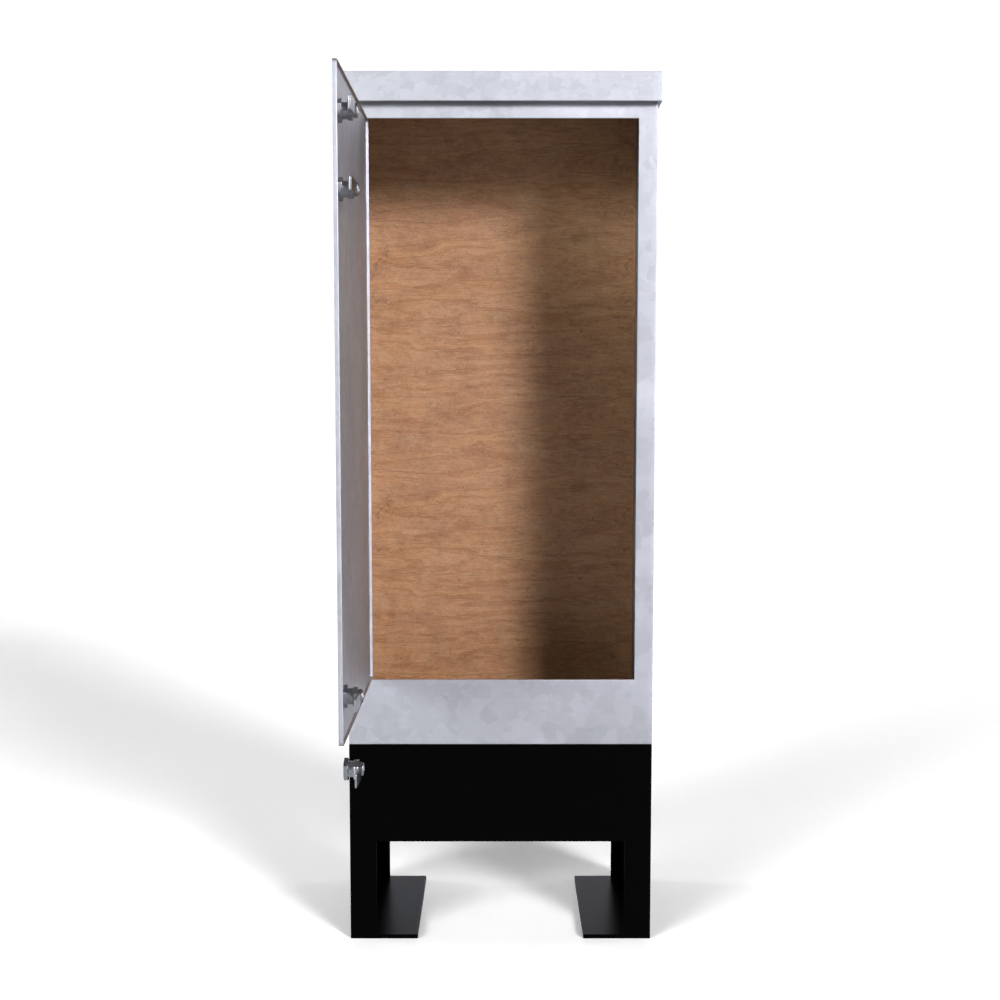

An 12mm fully treated, exterior-grade plywood backboard provides a mounting surface for electrical components, while the 230mm working depth helps installers plan the internal layout. The door is secured with an 8mm triangular-key camlock, and door seals designed to IP55 help limit dust and water ingress.

Key Features

• 3mm steel construction: robust housing for outdoor installations.

• Hot dip galvanised finish: corrosion protection to BS EN ISO 1461.

• Detachable painted root: practical installation and below-ground mounting.

• Treated plywood backboard: 12mm thick mounting surface for equipment.

• Triangular-key camlock: controlled access to the enclosure.

• Stainless steel block hinges: durable, corrosion-resistant door hardware.

• Earthing provisions: 6mm brass earth studs on the pillar and door, with a 500mm earth strap.

• Hazard warning labels: supplied to BS EN ISO 7010.

• Made in England.

Included as Standard:

• Hot dipped galvanised to BS EN ISO 1461 standard; protectsagainst rust and corrosion; extends life of product

• Detachable painted root; gives long lasting protection and ease of installation

• Pillars are fitted internally with 12mm external grade, fully treated plywood backboard; strong, stable and knot free

• 6mm brass earth stud on pillar and door with 500mm earth strap; protects individuals and equipment

• Ground level clearly marked for safety and ease of installation

• Pillars are supplied with hazard warning labels to BS EN ISO 7010 standard: saves time and cost for installer

• Door seals designed to IP55; protects against dust and water spray

• Tri-head secure locks for security and protection

• Cast stainless-steel block hinges offer strength and rigidity

• Accepts CEL stainless-steel distribution boards

• Recessed door provides improved anti-vandal properties.

• Larger pillars fitted with lifting eyes

Colour Options:

• Powder coated finished to RAL or BS colours, Heritage style, antigraffiti and G2A specification for highway works

• Construction in stainless-steel casing - 3mm grade 304.

• CLL anti-vandal locks instead of Tri head locks.

• Hasp & staple and Yale lock for added security.

• Louvres in door: one top, one bottom, for ventilation.

• Cable exit trays and document holder (excluding BDP50)

• Document holder

Our Galvanised Steel housings are hand made in England and manufactured from the highest quality steel and finished with a hot dip galvanised to BS EN ISO 1461 standard finish to withstand the rigours of the harshest weather conditions.
