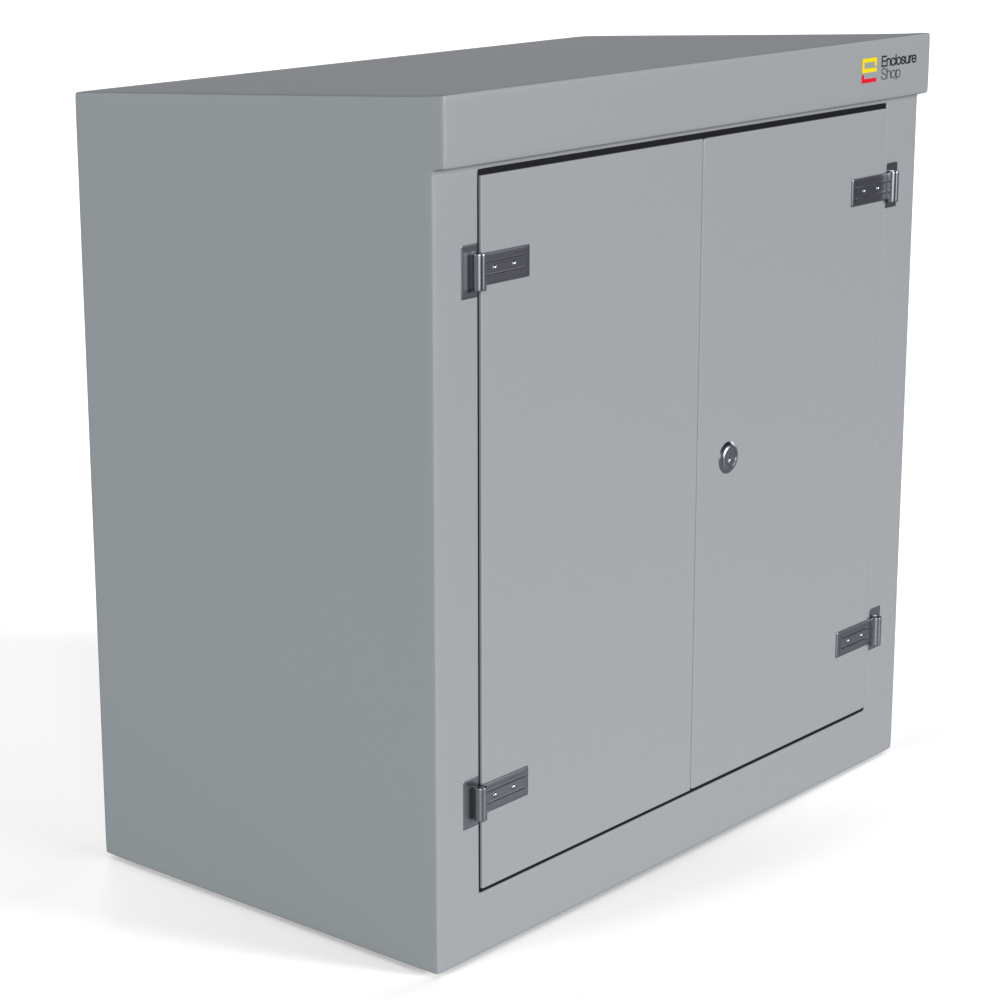

Our NX500 GRP Enclosure is compliant with BS (British Standards) and DNO (Distribution Network Operators) in the UK. In accordance with UK Power Networks requirements (UKPN). This IP54 compliant enclosure is suitable for floor standing installations.

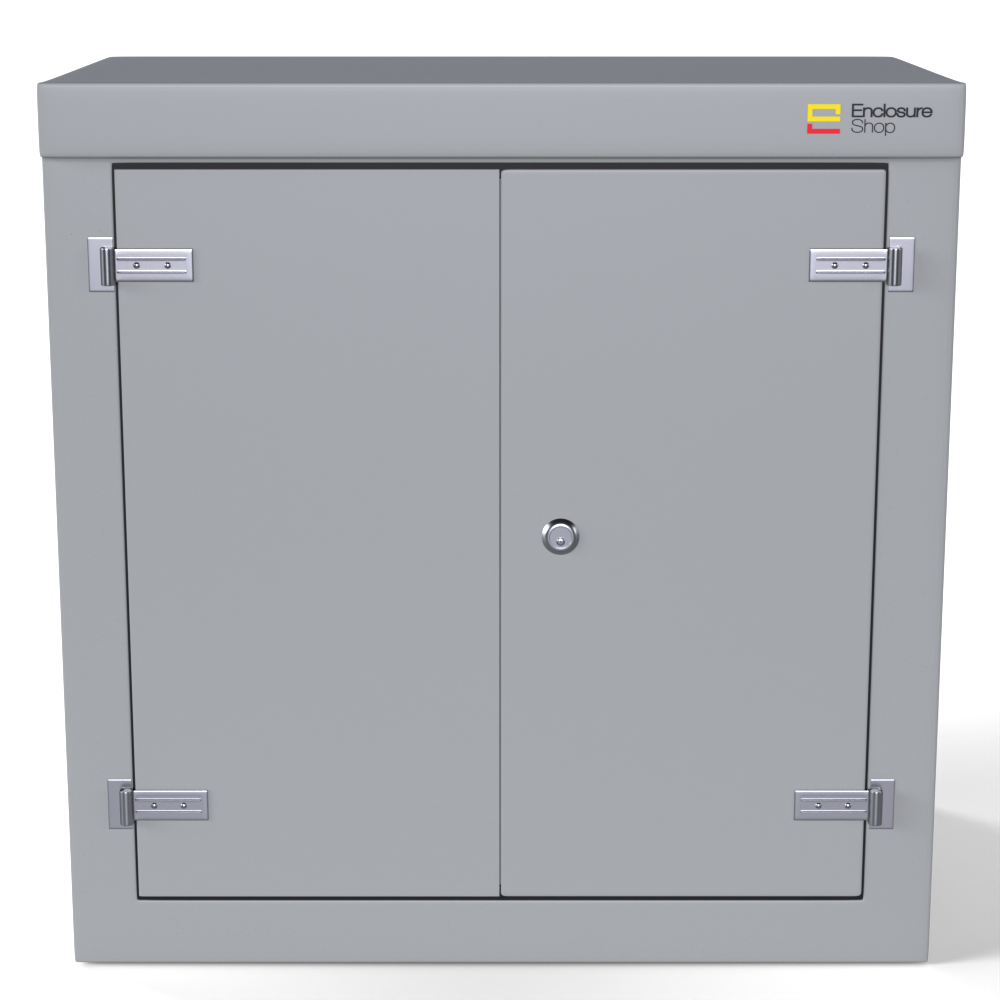

Double Opening Door provide access to weatherproof storage for electrical equipment and various other items of industrial equipment. The cabinet doors are secured by a stainless steel cylinder lock and has stainless steel hinges.
These floor mounted GRP cabinets are suitable for the protection of many different types of electrical and industrial equipment. They are commonly used by Gas, Water and Electricity providers, local authorities and the mechanical services industry, plus many others. IP54 Compliant and made with Class 2 Fire Resistant Resin (30 Minute Resistance).
|
Dimensions |
Width x Depth x Height (mm) |
|
External |
1215 x 750 x 1260 |
|
Internal Clearances |
1200 x 680 x 1170 |
|
Mounting Backboard |
18mm Thick Plywood - around 30mm smaller than backwall |
|
Door Configuration |
Double (Overall) W1030 x H1000 |
|
Lock Type |
Stainless Steel Cylinder Lock - Yale Type |
|
Weight |
60kg approx. |
Our GRP housings are manufactured from the highest quality GRP materials to withstand the rigours of the harshest weather conditions and are IP54 compliant.

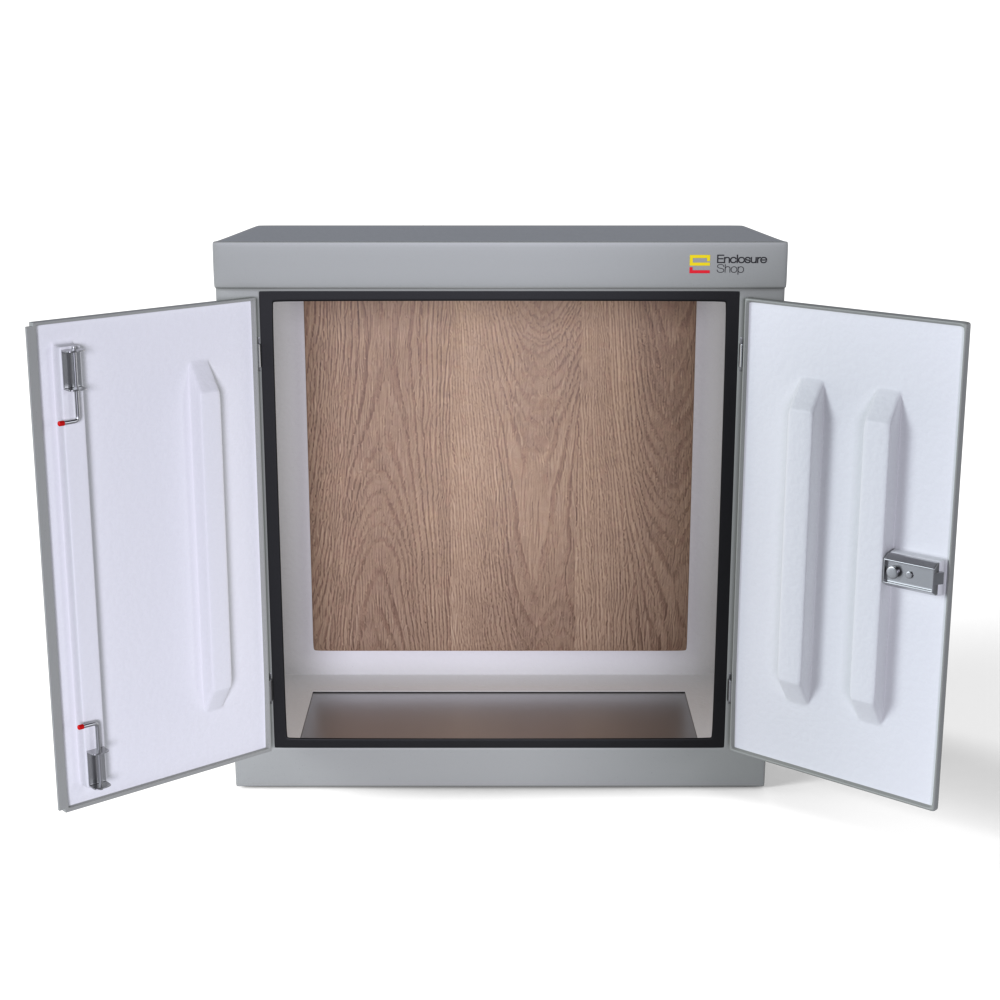

The internal finish is a durable GRP in white with a 18mm plywood back wall to fix equipment. The GRP floor is open base, it has an internal flange of around 100-150mm that is used to bolt down to concrete base, built from fire resistant and self extinguishing composite GRP (Glass Reinforced Plastic).
Specification:
Made with Class 2 fire resistant resin (30 minute resistance)
Floor Standing install - fix to a suitable concrete base by drilling through the GRP flange and fixing with suitable concrete bolts.
