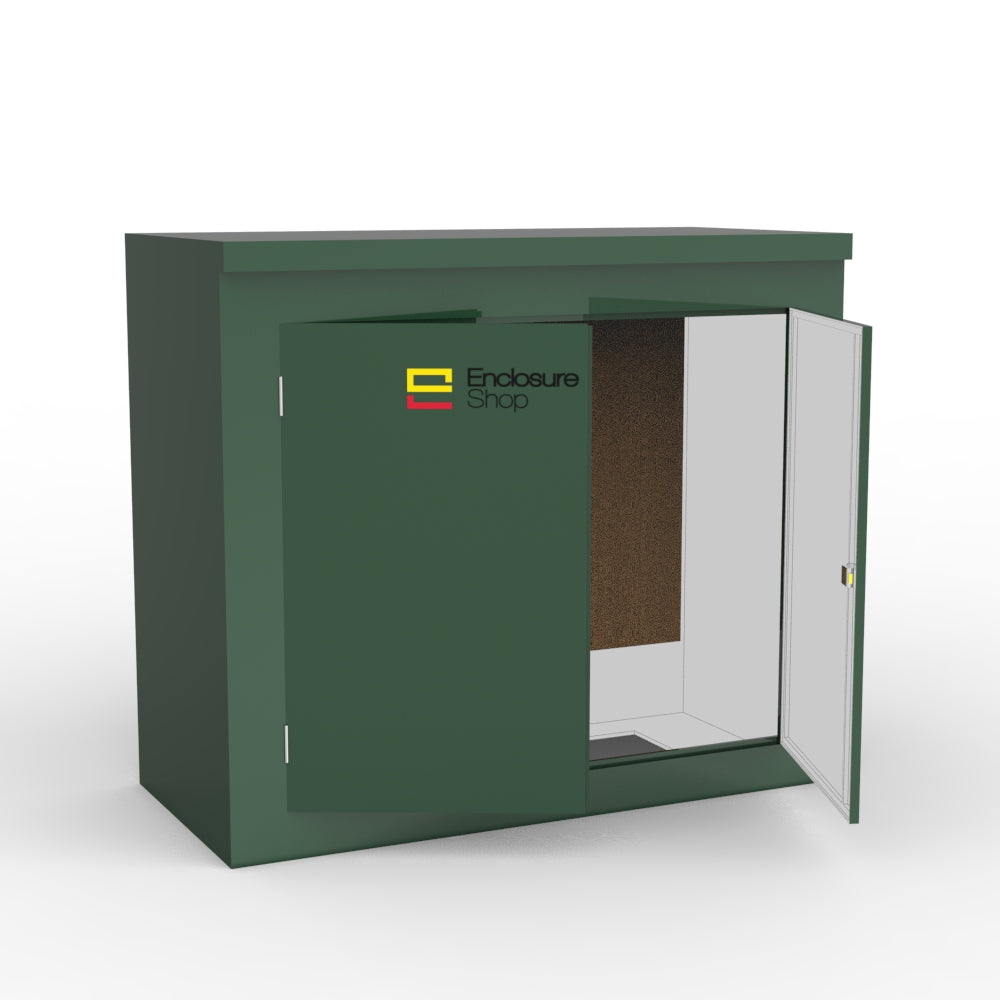

ENC11 GRP Enclosure Double Door - Open Doors

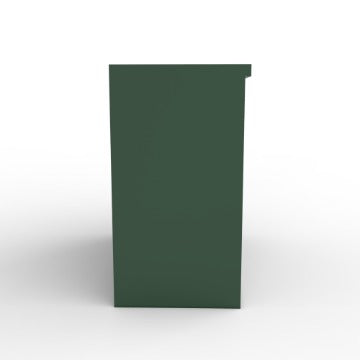

ENC11 GRP Enclosure Double Door - Side View
ENC11 GRP Enclosure Double Door - Showing Ply Backboard
ENC11 GRP Enclosure Hasp And Staple Option
ENC11 GRP Enclosure with Cylinder Lock and Key
ENC11 GRP Enclosure With Spring Door Latch
Roll over image to zoom in Click on image to zoom
ENC11 GRP Enclosure with Double DoorENC11 GRP Enclosure Double Door with DimensionsENC11 GRP Enclosure Double Door - Open DoorsENC11 GRP Enclosure Double Door - Side ViewENC11 GRP Enclosure Double Door - Showing Ply BackboardENC11 GRP Enclosure Hasp And Staple OptionENC11 GRP Enclosure with Cylinder Lock and KeyENC11 GRP Enclosure With Spring Door Latch

GRP Enclosure 1500mm x 700mm x 1300mm - ENC11

Delivery (Tail Lift) £120+vat | Approx 7-10 Working Days
ENCSKU: ENC11
Contact us for a price

Description

This ENC11 GRP Enclosure is the perfect solution for protecting your electric meter or any electrical equipment. Made from strong GRP, it offers reliable and long-lasting protection for your meter or other electrical equipment.

They are commonly used by Gas, Water and Electricity providers and local authorities along with the mechanical services industry and many others. IP55 Compliant (without Louvre Vents) and made with Class 2 Fire Resistant Resin (30 Minute Resistance).

ENC11 Data Sheet

ENC11 Drawing

Dimensions Width x Depth x Height (mm)
External 1500 x 700 x 1300
Internal 1495 x 630 x 1250
Door Configuration Double  W650 x H1070
Lock Type Cylinder Night Latch or Hasp & Staple
Weight 75kg approx.

This model includes an 18mm treated plywood backboard for equipment mounting, lockable double doors with stainless steel hinges for tamper-resistant access, and an open base with internal flange for fixing to a concrete foundation.

This kiosk is suitable for use on electrical installations designed in accordance with UK Power Networks (UKPN) G81 specifications, including 3-phase service termination points and new connection works. Final approval should always be confirmed with your network designer or DNO/ICP prior to installation.

Key Features:

  • External size: 1500 mm (W) × 700 mm (D) × 1300 mm (H)
  • Double door access for easy installation and maintenance
  • GRP construction with corrosion and impact resistance
  • 18 mm ply backboard mounted on standoffs
  • IP55 weather and dust protection rating
  • Class 2 fire-resistant resin construction
  • Base flange for bolting directly to a concrete plinth
  • Standard colours: British Racing Green (BS227), Grey (BS 00 A 05) or Anthracite Grey

Options:

  • Lock type - Cylinder Lock or Hasp and Staple
  • Colour - British Racing Green (BS227) or Grey (BS 00 A 05) or Anthracite Grey (RAL 7016)
