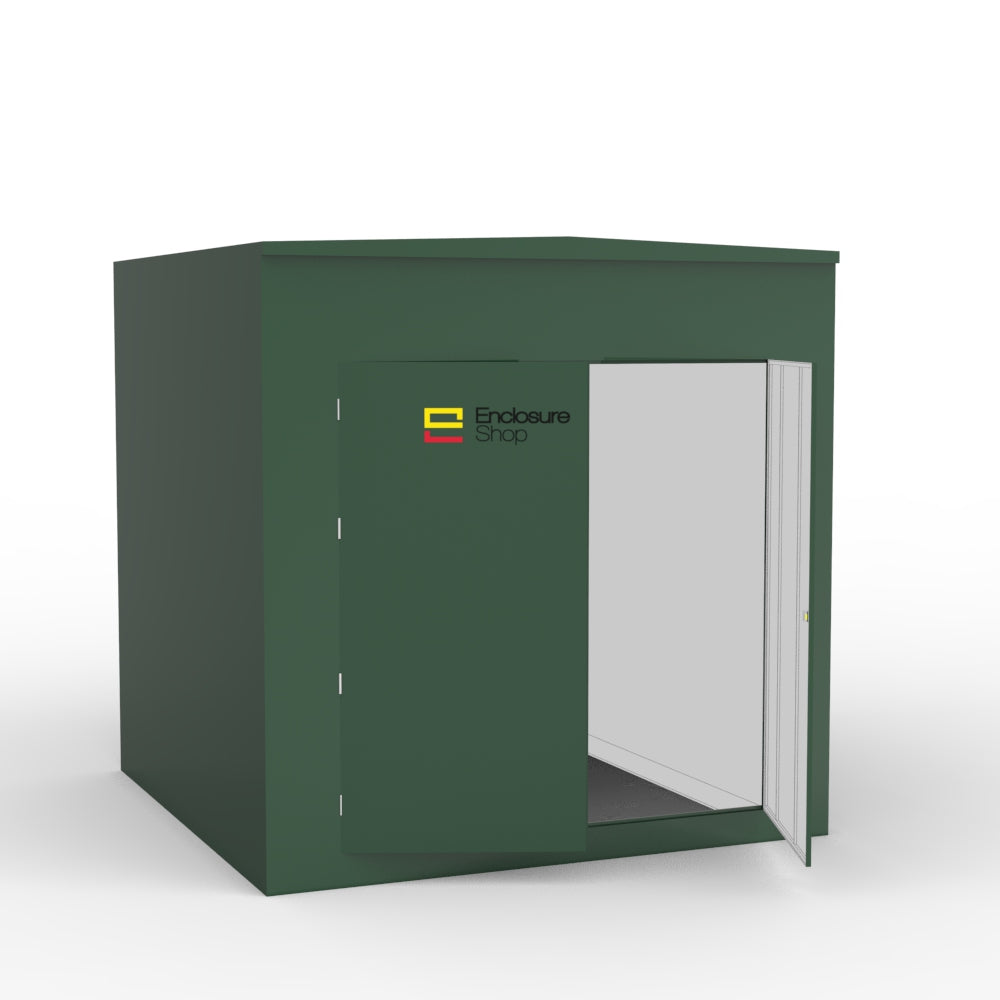

ENC22 GRP Walk In Enclosure with Double Doors Open
ENC22 GRP Enclosure with Stainless Steel Hinges

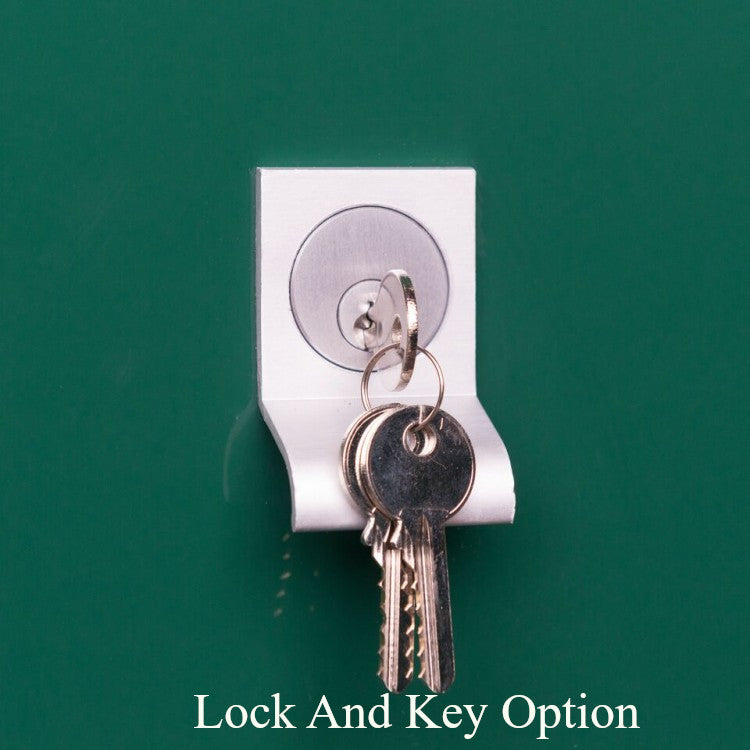

ENC22 GRP Enclosure with Cylinder Lock and Key
ENC22 GRP Enclosure Hasp And Staple Option

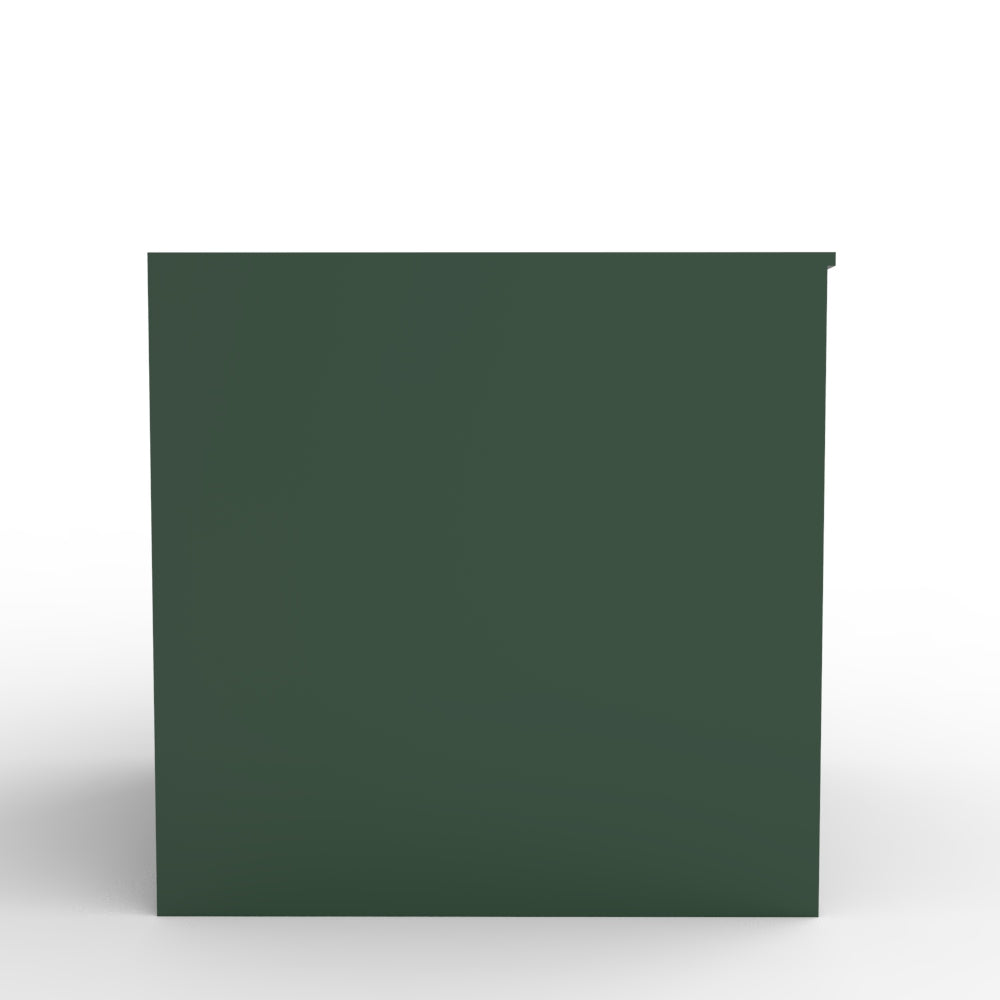

ENC22 GRP Walk In Enclosure with Double Door Side View
Roll over image to zoom in Click on image to zoom
ENC22 GRP Walk In Enclosure with Double DoorENC22 GRP Walk In Enclosure with Double Door and DimensionsENC22 GRP Walk In Enclosure with Double Doors OpenENC22 GRP Enclosure with Stainless Steel HingesENC22 GRP Enclosure with Cylinder Lock and KeyENC22 GRP Enclosure Hasp And Staple OptionENC22 GRP Walk In Enclosure with Double Door Side View

GRP Walk In Enclosure 2500mm x 2500mm x 2500mm - ENC22

HIAB Delivery POA | 15 Working Days Approx.
ENCSKU: ENC22
Price:
£5,850.00 exc. VAT
(
£7,020.00

Tax included

)

Description

This ENC22 GRP Walk In Enclosure is the perfect solution for protecting your electric meter or any electrical equipment. Made from strong GRP, it offers reliable and long-lasting protection for your meter or other electrical equipment.

They are commonly used by Gas, Water and Electricity providers and local authorities along with the mechanical services industry and many others. IP55 Compliant (without Louvre Vents) and made with Class 2 Fire Resistant Resin (30 Minute Resistance).

ENC22 Data Sheet

ENC22 Drawing

Dimensions Width x Depth x Height (mm)
External 2500 x 2500 x 2500
Internal 2400 x 2350 x 2350
Door Configuration Double  W1900 x H1900 (overall)
Lock Type Cylinder Night Latch or Hasp & Staple
Weight 650kg approx.

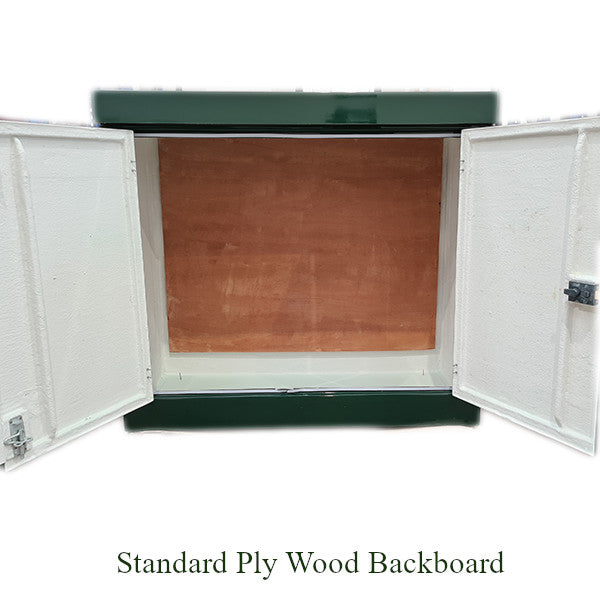

This model includes an 18mm treated plywood backboard for equipment mounting, lockable double doors with stainless steel hinges for tamper-resistant access, and an open base with internal flange for fixing to a concrete foundation.

This kiosk is suitable for use on electrical installations designed in accordance with UK Power Networks (UKPN) G81 specifications, including 3-phase service termination points and new connection works. Final approval should always be confirmed with your network designer or DNO/ICP prior to installation.

Key Features:

  • External size: 2500 mm (W) × 2500 mm (D) × 2500 mm (H)
  • Double door access for easy installation and maintenance
  • GRP construction with corrosion and impact resistance
  • 18 mm ply backboard mounted on standoffs
  • IP55 weather and dust protection rating
  • Class 2 fire-resistant resin construction
  • Base flange for bolting directly to a concrete plinth
  • Standard colours: British Racing Green (BS227), Grey (BS 00 A 05) or Anthracite Grey

Options:

  • Lock type - Cylinder Lock or Hasp and Staple
  • Colour - British Racing Green (BS227) or Grey (BS 00 A 05) or Anthracite Grey (RAL 7016)

Optional Extras:

  • Door Stays
  • Louvre Vents
  • Cat Flap Cable Entry
  • Baseboard Floor - 12mm Encapsulated Plywood
