Protect critical networking hardware in the most unforgiving environments. This premium, heavy-duty 4RU wall-mounted data cabinet is purpose-built to defend sensitive 19" rack-mounted equipment from dust, water, and physical impacts.
Engineered with a robust monoblock body and fully certified to IP66, NEMA 4, and IK10 standards, this ultra-durable steel enclosure is ideal for both demanding indoor industrial setups and harsh external applications. Whether deployed in manufacturing plants, water treatment facilities, infrastructure projects, or roadside telecom sites, this compact 4U rack ensures 24/7 network uptime.
Certified IP66 & NEMA 4 Protection: Complete dust-tight sealing paired with maximum resistance against high-pressure water jets from any direction.
Vandal-Resistant (IK10 Rated): Built from 1.5mm heavy-duty galvanised steel sheet with a high-strength monoblock body to withstand severe mechanical impacts and tampering.
Premium FIP Polyurethane Seal: Features a machine-applied, full-perimeter foamed-in-place (FIP) polyurethane seal that maintains elasticity and sealing integrity in extreme temperatures (-40°C to 80°C).
Industrial Cable Management: Integrated galvanised steel gland plate on the bottom face comes complete with gaskets and fasteners for secure, watertight cable entry.
Advanced Surface Treatment: Finished with a UL-approved AkzoNobel epoxy polyester powder coating (RAL7035 textured grey, 80-120 micron average thickness) providing superior corrosion resistance.

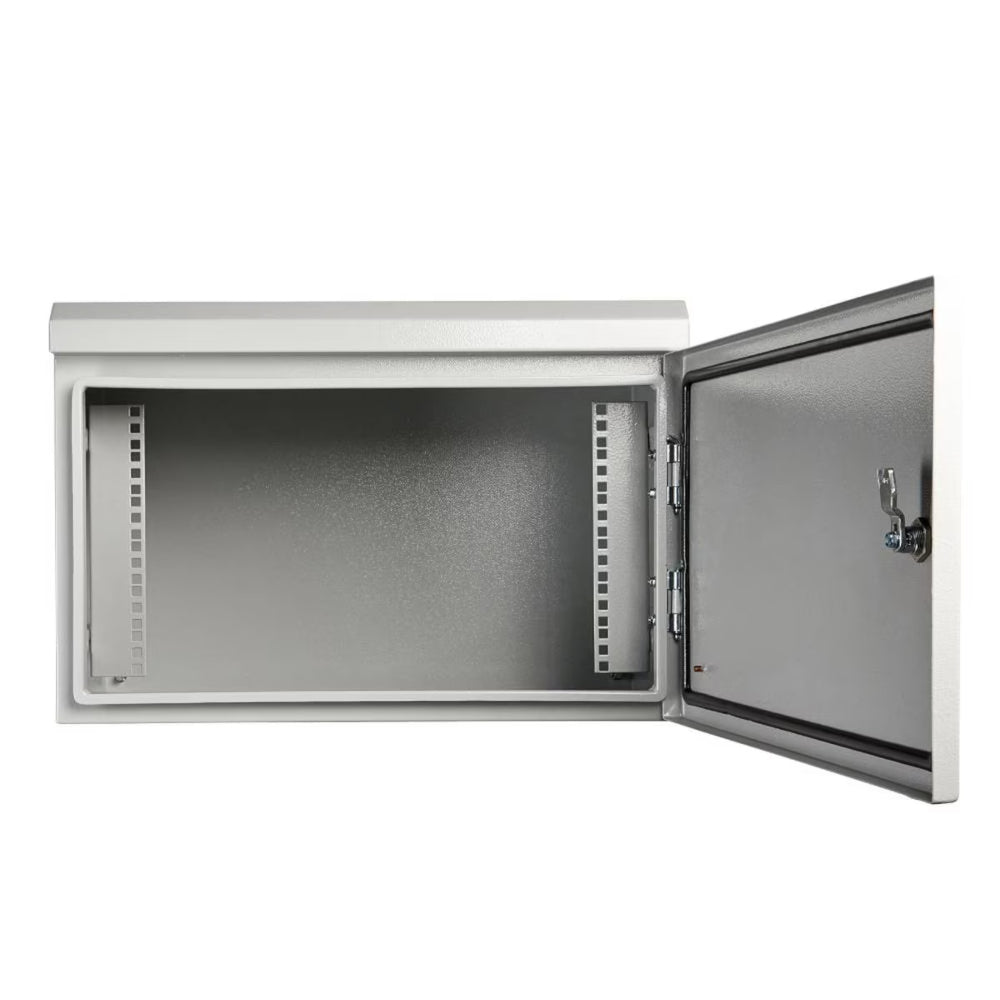

Easy Equipment Access: Surface-mounted door features concealed removable hinges with captive pins, delivering a wide 110° opening angle for stress-free installation and maintenance.
High Security: Equipped with a standard 5mm double-bit insert quarter-turn lock to prevent unauthorized physical access.
Rack Height: 4U / 4RU
Dimensions: 600mm Width x 300mm Depth
Material Construction: * Enclosure Body: 1.5mm Galvanised Steel
Enclosure Door: 1.5mm Galvanised Steel
19” Data Rack Rails: 1.5mm Galvanised Steel
Ingress Protection: IP66 (IEC/EN 60529), NEMA 4
Impact Resistance: IK10 (IEC/EN 62208)
Standards Compliance: EIA-310-D, AS60529, RoHS, CE, UKCA
Colour: Grey (RAL7035)
Manufacturer Warranty: 5-Year Manufacturer’s Warranty
This 4RU 300mm deep data cabinet is the industry standard for low-profile, space-saving installations in harsh environments, including:
Industrial automation & manufacturing plants
Marine, coastal, and high-moisture environments
Highways, rail infrastructure, and roadside telecom hubs
Waste-water and utility treatment facilities
Outdoor security, CCTV, and AV distribution networks
