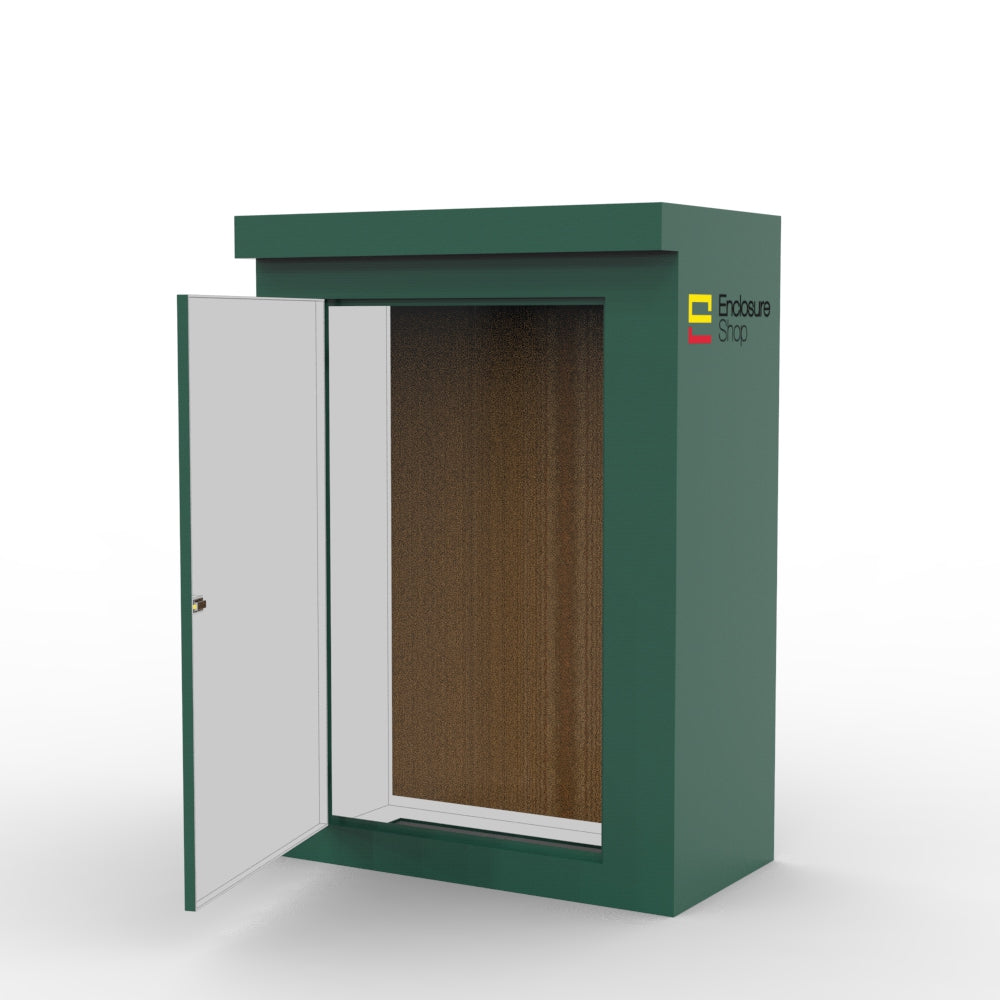

Single Phase 100A GRP Kiosk - 670x340x930mm - CAB2

Our GRP Kiosk CAB2 is compliant with BS (British Standards) and DNO (Distribution Network Operators) in the UK.

This GRP Kiosk is suitable for 100A Single Phase electric supply as per UK Power Networks GRP Kiosk Specification given in UKPN Drawing No: EDS 08-2110-13c (please ensure you cross check with your requirements as these may differ).

• W670x D340 x H930
• Minimum GRP Thickness 4.5mm
• Minimum Service Life of 40 years
• Suitable for Outdoor Installations
• 18mm Thick Ply Backboard with 20mm Stand offs
• Includes Fixing Points on two or more sides allowing to fix to concrete base
• Doors with Stainless Steel Hinges and Locking Facility

This CAB2 Floor Standing GRP Kiosk is the perfect solution for protecting your electric meter or any electrical equipment. Made from strong GRP, it offers reliable and long-lasting protection for your meter or other electrical equipment.

Our GRP Kiosks are suitable for the protection of various items of industrial equipment. This GRP Kiosk with single opening door provides weatherproof storage for equipment on the roadside or site use.

They are commonly used by Gas, Water and Electricity providers and local authorities along with the mechanical services industry and many others.  IP54 compliant (without Louvre Vents) and made with Class 2 Fire Resistant Resin (30 Minute Resistance).

CAB2 Data Sheet

CAB2 Technical Drawing

Included as Standard:

• Single door

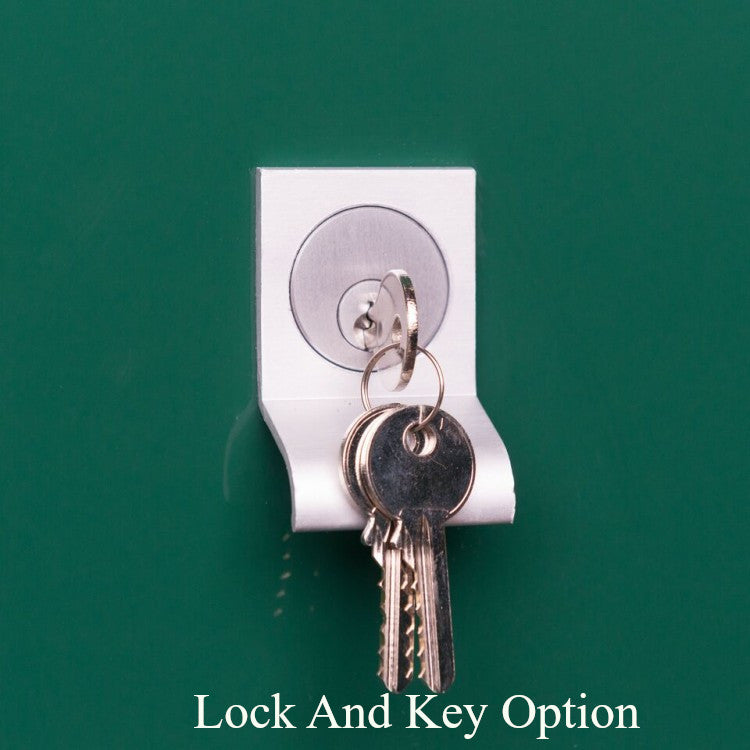

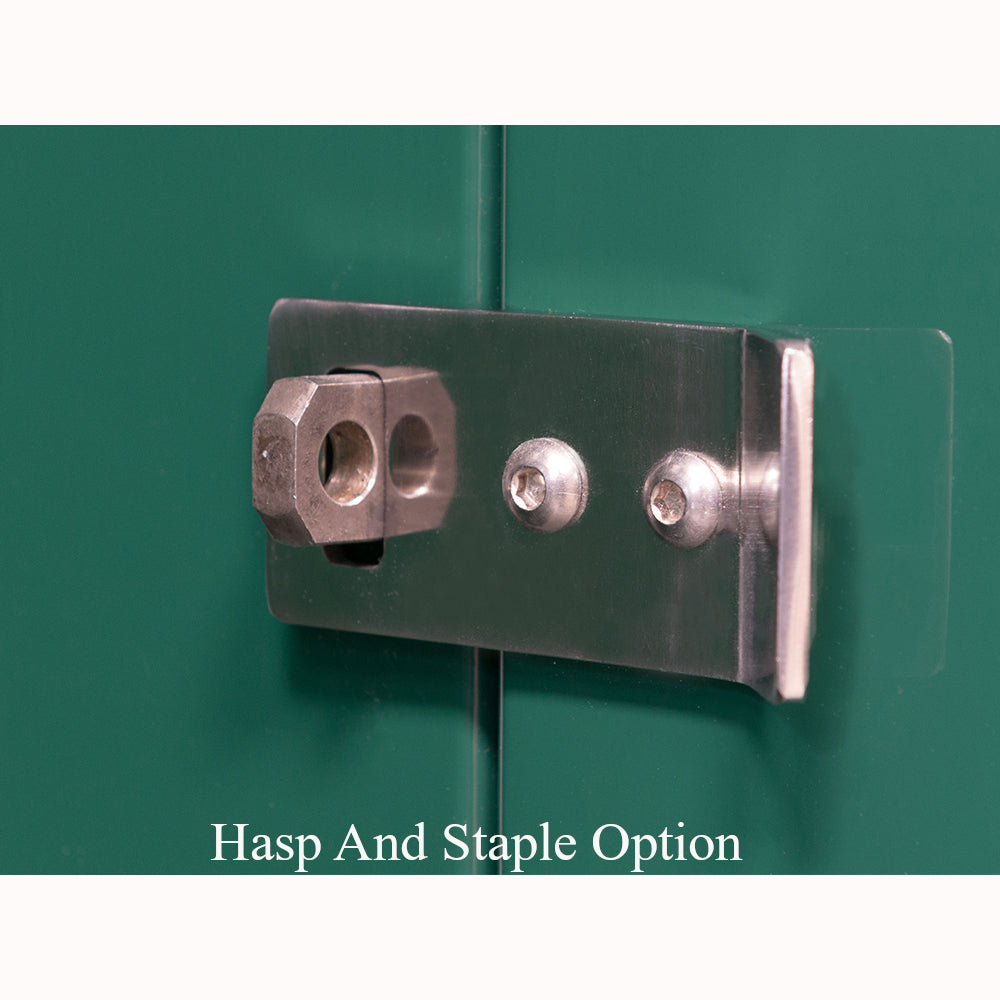

• Cylinder night latch lock & 3 keys or stainless steel hasp & staple (padlock not supplied)

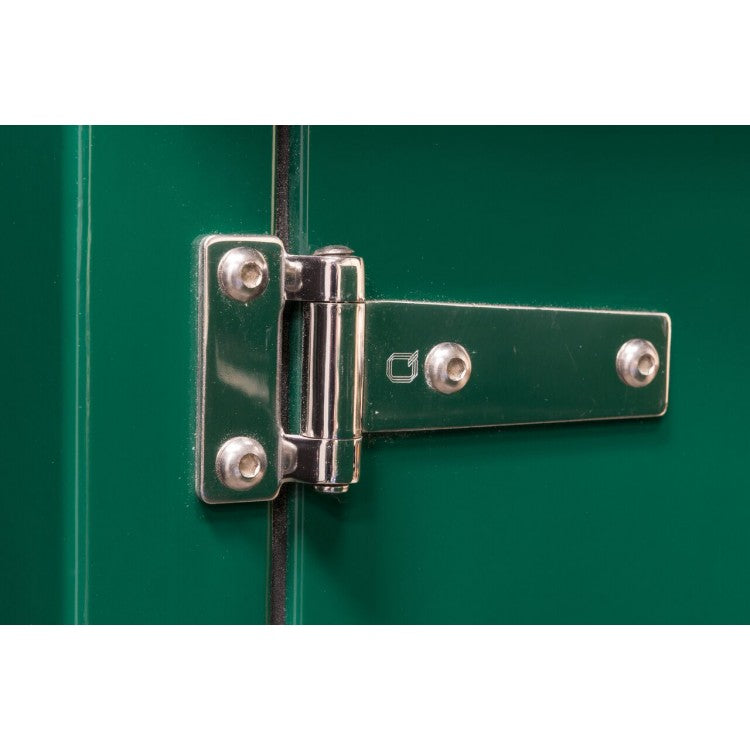

• Stainless steel hinges & fixings
• External finish Green (14 C 39) - Smooth semi-gloss GRP or Grey (10 A 07)

• Internal finish - durable polyester gel coat finish in white
• 18mm treated plywood backboard for fixing equipment
• Open floor with integral bolt down flanges (100-150mm)
• Dust/Water prevention seals/IP54 compliant (IP24 compliant if ordered with Louvre Vents)

• Made with Class 2 fire resistant resin (30 minute resistance)

Options:

• Colour - Green (14 C 39)  Or Grey (10 A 07)

• Lock Version - Cylinder Lock or Hasp & Staple
• Louvered Vents (IP24 compliant)
• Door Stays

Optional Extras (contact us for price/availability):

• Lifting Eyes
• GRP Cat Flap

• 12mm Ply Core Construction

Our GRP Kiosks are hand made in England and manufactured from the highest quality GRP materials to withstand the rigours of the harshest weather conditions and are IP54 compliant (IP24 compliant with Louvre Vent option).

External colour is Green (14 C 39) as standard Or Grey (10 A 07).  All enclosures have a tough weather resistant polyester gel coat outer and sloped roof for rainwater run off, reinforced with a GRP laminate.

Internal finish is a durable polyester gel coat finish in white with a 18mm ply back wall to fit equipment (around 30mm smaller than back wall). The kiosk has an open floor with a 100-150mm flange which can be used to bolt down the enclosure.
